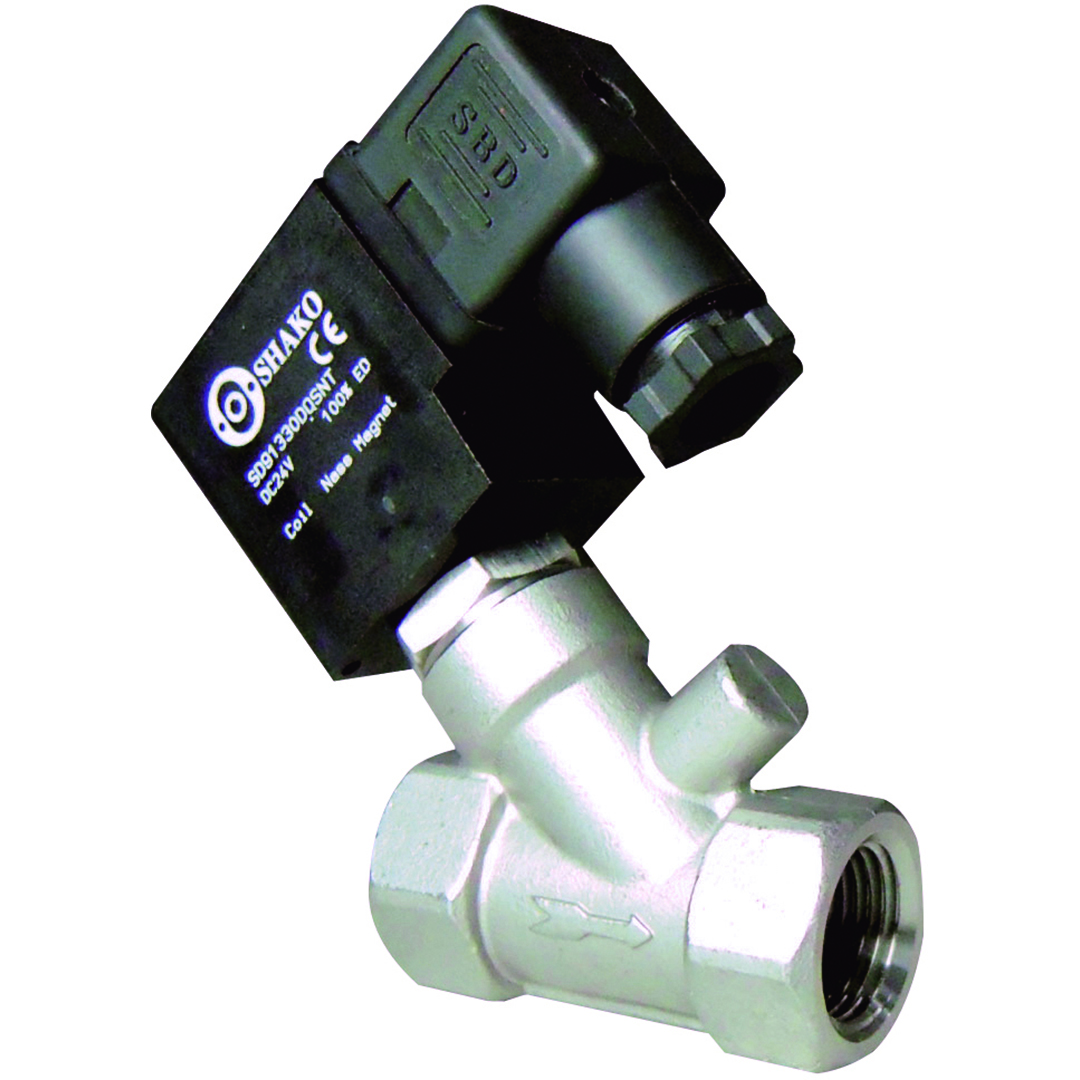

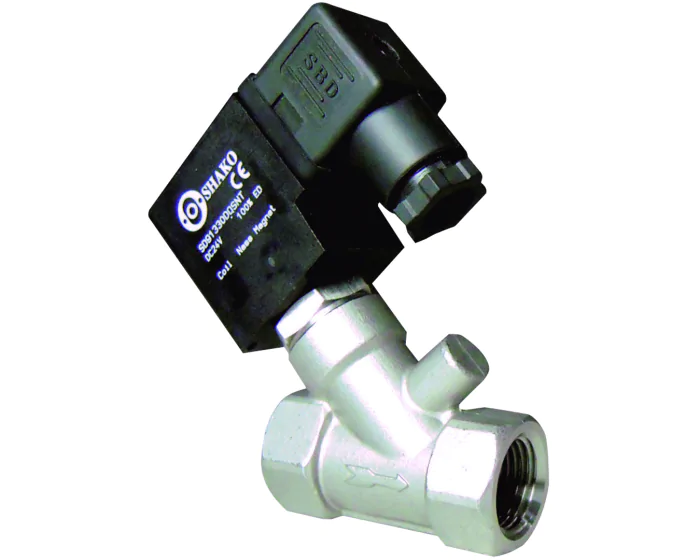

The solenoid valve type SPUY 220 is a normally closed (NC) direct acting stainless steel solenoid valve, all voltages.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 8 |
| Minimum delta P (bar) | 0 |
| Connector | T30 |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 58.0 |
| Protection index (IP) | IP 65 |
| Gasket | FKM |
| Kv (m³/h) | 1.30 |
| Body material | Stainless steel CF8M (1.4408) |
| Position | Normally closed |
| PS (bar) | 8 |
| Connections | BSP FF |
| Voltage | 230 V AC |
| TS max (°C) | 90 |
| TS min (°C) | -10 |
| Solenoid valve type | Direct acting |
| Solenoid pilot valve ways | 2/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) 230 V AC | 081202 | S1005668 |
€167.43
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) 24 V DC | 081212 | S1005669 |
€167.43
(excl. btw)
|
add to cart |
